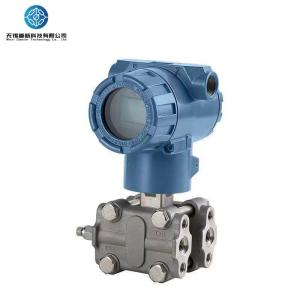

0.075% FS Accuracy Class Differential Pressure Measurement for Gauge Pressure Applications and Monitoring
The instrument requires a supply voltage of 12-36V DC, making it easy to integrate into existing systems. It also features a flange connection for easy installation and maintenance. The static pressure range for this product is 0-10 MPa to 0-40 MPa, making it suitable for a wide range of applications.
The Pressure Instrument Series is available in both gauge pressure and absolute pressure options, allowing for flexibility in usage. The output signal is also customizable, with options for voltage, current, and frequency output.
Overall, the Pressure Instrument Series is a reliable and versatile solution for pipeline pressure monitoring. With its impressive temperature range, long-term stability, and customizable output signal, it is suitable for a wide range of applications. Its flange connection also makes installation and maintenance a breeze, ensuring that the instrument is easy to use and maintain.
| Mounting Type | Flange Mounting, Impulse Line Connection |
| Measurement Range | -100Kpa To +40MPa (Selectable) |
| Static Pressure Range | 0-10 MPa To 0-40 MPa |
| Long-term Stability | ≤±0.2% FS/year |
| Temperature Drift | ±0.02% FS/°C |
| Operating Temperature Range | -40°C To 85°C |
| Output Signal | 4-20mA(Hart),RS485 |
| Ingress Protection (IP) Rating | IP65 |
| Supply Voltage | 12-36V DC |
| Wetted Parts Material | 304, 316 (Selectable) |
The DX-3051DP Pressure Instrument Series is ideal for use in multiple scenarios, including pump station pressure control, high and low-pressure ports, and differential pressure measurement. Its flange mounting and impulse line connection make it easy to install, and its IP65 ingress protection rating ensures that it can withstand harsh environmental conditions.
The instrument is designed to measure gauge pressure and absolute pressure, making it suitable for a wide range of applications. It has a long-term stability of ≤±0.2% FS/year, ensuring accurate readings even over extended periods. The wetted parts are made of 304 and 316 materials, which are selectable based on the application requirements.
If you are looking for a pressure instrument with a minimum order quantity of 1, then the DX-3051DP Pressure Instrument Series is an excellent choice. The product is packaged in a carton and has a delivery time of 2-5 workdays. You can make payments through T/T, L/C, or Western Union, and the supply ability is 100+set+5.
Our Pressure Instrument Series product comes with comprehensive technical support and services to ensure complete customer satisfaction. Our support team is available to assist you with any queries or issues related to the product. We also offer repair and maintenance services to keep your instrument in top condition. In addition, we provide calibration services to ensure accurate readings and compliance with industry standards. Our team of experts is dedicated to providing the best possible support and services to our customers.
|
|
